pallet cell

Pre-engineered and cost-effective palletizing cells for bags, boxes, and custom applications.

  • Compact Footprint
  • Fast and Easy Installation
  • Short Lead Times
  • Customizable for Full Autonomy
  • Easy-to-Use Touch-Screen Interface
  • Expandable Options
  • Pallet Conveyance
  • Shrink Wrapping
  • Labeling, and More
  • Easy to add New Parts and Sizes
robotic palletizing system

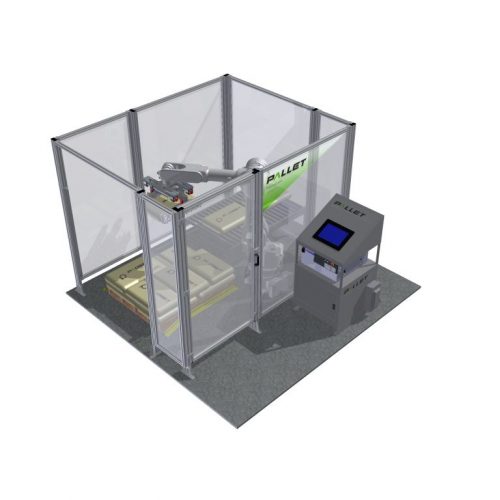

SS-1

The SS-1 is the home-base Palletcell.  This pre-engineered cell is designed to get you off the ground with a straight-forward and easy to understand system that won’t break the bank.

robotic palletizing

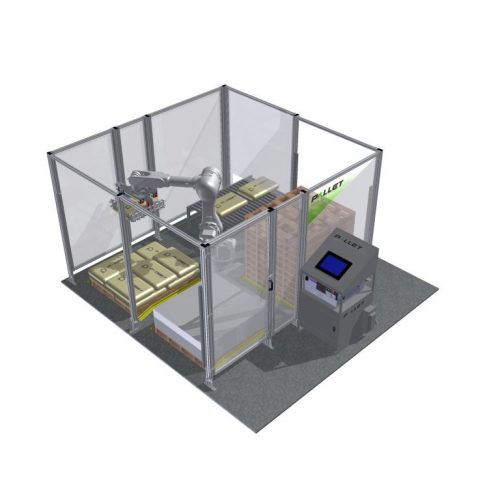

SS-2

A more advanced version of its little brother, the SS-2 features positions available for empty pallets and a slip-sheet magazine.  This cell is designed to offer flexible and expanded capability while maintaining the bullet-proof function of a single-station cell.

robotic palletizing

DS-1

The DS-1 take palletizing to the next level by expanding on the straight-forward design of a single-station cell and doubling the capacity.  Safe, solid, and volume-ready.

palletizing solutions

DS-2

For a fully automated high-volume application, the DS-2 is where it’s at.  This cell can manage two loading stations simultaneously with near total autonomy.  The two extra accessory stations make room for empty pallets, slip sheet magazines, or any other option you need to plug in.

Standard Features

Feature

Number of palletizing stations

Footprint (w/o control station)

Robot

Application

Capacities

Infeed Conveyor

EOAT

Pallet Exchange

Empty Pallet Placement

Fencing

Controls

Interface

SS-1

1

7’2″ x 9’2″

SS-2

1

10’5″ x 10’10”

DS-1

2

15’4″ x 7’3″

DS-2

2

15’7″ x 10’8″

Kawasaki RD080N high-speed palletizing robot or FANUC M-series palletizing robot

Bags, boxes, or cartons – one line running one SKU at a time

Bags: 25-50kg – Boxes: up to 25kg

3/4 HP, VFD-equipped, 24″W x 36″L – configured for either boxes or bags

Bags: bag gripper – Boxes: vaccum plate, gripper, or side-fork

Manuel- forklift or pallet jack

Manual                                        Automatic                                   Manual                                        Automatic

Clear polycarbonate with light curtains

OMRON Controls Package as Needed

10″ color touch screen HMI

Check out each in-depth standard features
